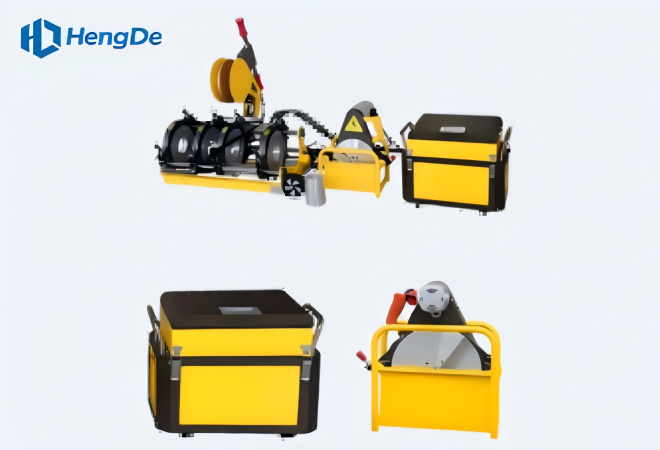

Butt Fusion Welding Machine

Certification

Request a Quote Send Email

Introduction
Feature
Specification
Physical Parameter
Application
Download

Specification

Full Automatic Butt Welding Machine
MODEL: DRBQ200/DRBQ250/DRBQ315/DRBQ400
Heating Plate Max Temp	270℃
Temperature Deviation	±5℃
Operation Temperature	220℃
Pressure Adjustable Range	0-6.3Mpa
Applicable Material	PE PPR PB PVDF
Model	DRBQ200	DRBQ250	DRBQ315
Pipe Size	63 75 90 110 125 140 160 180 200	90 110 125 140 160 180 200 225 250	90 110 125 140 160 180 200 225 250 280 315
Input Voltage	220V	220V	220V
Milling Tool Power	1.0KW	1.1KW	1.1KW
Heating Plate Power	1.8KW	2.3KW	3.1KW
Hydraulic Station Power	0.75KW	0.75KW	0.75KW
G.W.	205KGS	227KGS	255KGS
Includes basic frame, plaing tool, heating plate and steel stand

Hand-Rotating Butt Welding Machine
MODEL: DRBC110-2/DRBC160/DRBC160-2/DRBC200/DRBC200-2/DRBC250
Heating Plate Max Temp	270℃
Temperature Deviation	±3℃
Operation Temperature	220℃
Pressure Adjustable Range	0-6.3Mpa
Applicable Material	PE PPR PB PVDF
Model	DRBC110-2	DRBC160	DRBC160-2	DRBC200	DRBC200-2	DRBC250
Pipe Size	63 75 90 110	63 75 90 110 125 140 160	63 75 90 110 125 140 160	63 75 90 110 125 140 160 180 200	63 75 90 110 125 140 160 180 200	90 110 125 140 160 180 200 225 250
Input Voltage	220V	220V	220V	220V	220V	220V
Milling Tool Power	0.68KW	0.68KW	0.68KW	0.68KW	0.68KW	1.1KW
Heating Plate Power	1.5KW	1.5KW	1.5KW	1.8KW	1.8KW	2.3KW
G.W.	35KGS	45KGS	35KGS	50KGS	40KGS	95KGS
Includes basic frame, plaing tool, heating plate and steel stand

Hydraulic Butt Fusion Welding Machine
MODEL: DRBY160/DRBY200/DRBY250
Heating Plate Max Temp	270℃
Temperature Deviation	±5℃
Operation Temperature	220℃
Pressure Adjustable Range	0-6.3Mpa
Applicable Material	PE PPR PB PVDF
Model	DRBY160	DRBY200	DRBY250
Pipe Size	63 75 90 110 125 140 160	63 75 90 110 125 140 160 180 200	90 110 125 140 160 180 200 225 250
Input Voltage	220V	220V	220V
Milling Tool Power	1.0KW	1.0KW	1.1KW
Heating Plate Power	1.5KW	1.8KW	2.3KW
Hydraulic Station Power	0.75KW	0.75KW	0.75KW
G.W.	115KGS	120KGS	150KGS
Includes basic frame, plaing tool, heating plate and steel stand

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
