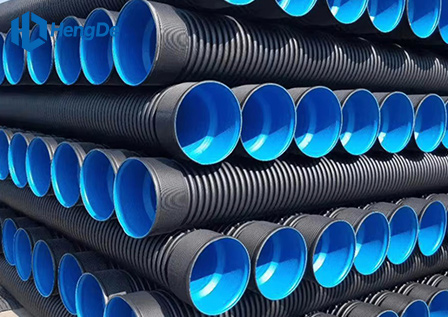

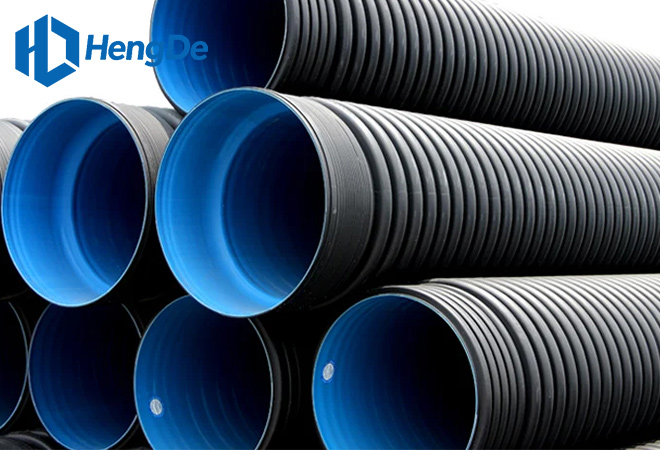

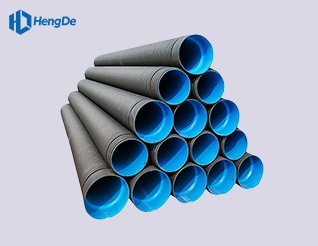

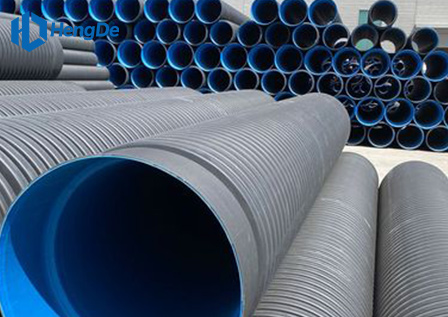

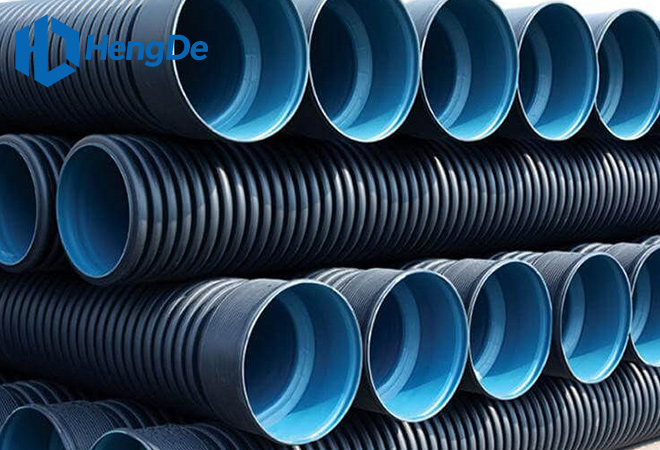

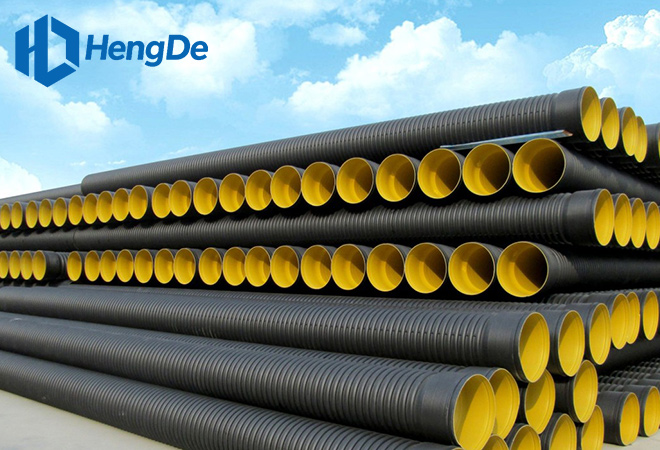

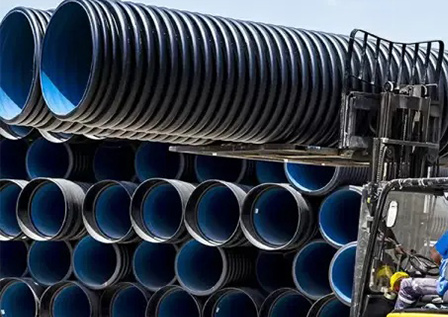

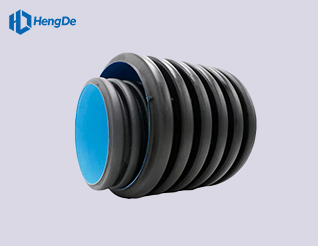

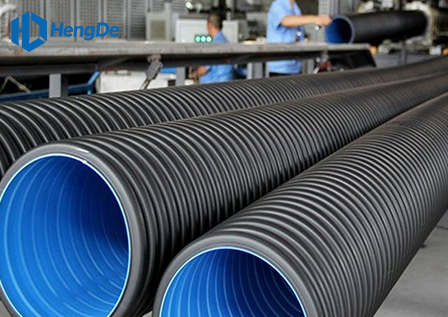

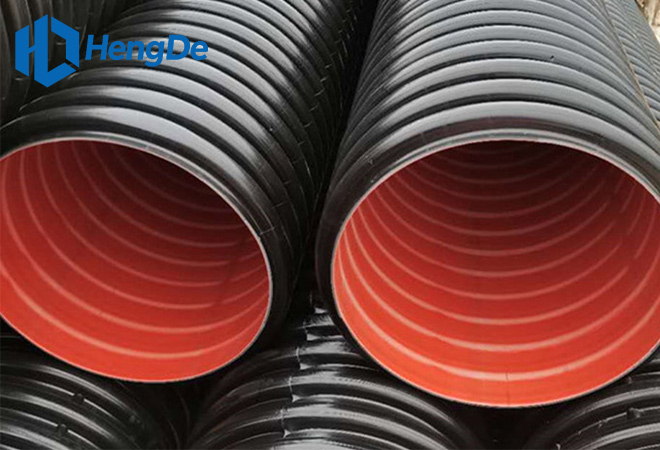

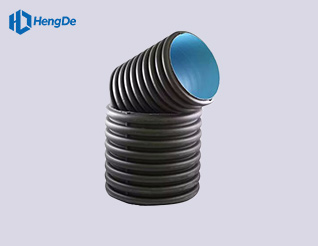

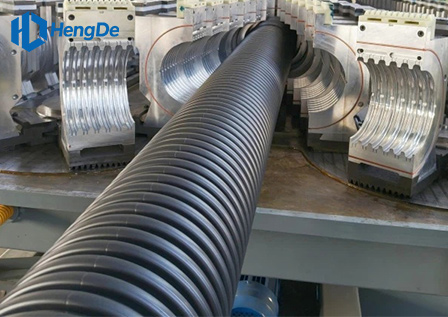

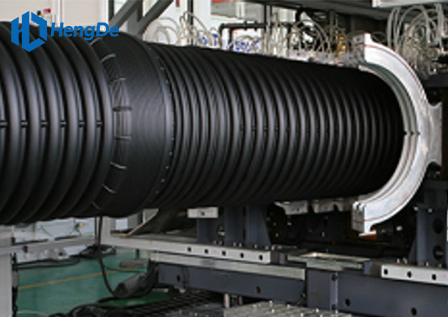

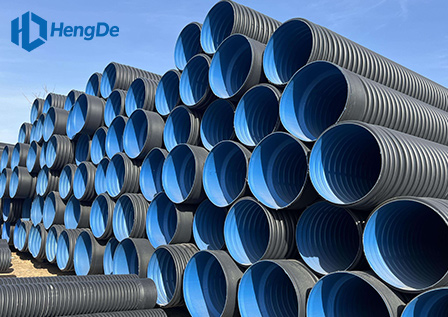

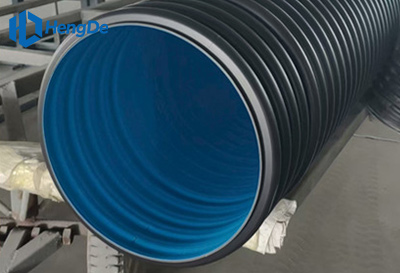

HDPE Double Wall Corrugated Drainage Pipe
Standard: GB/T 19427.1-2019
1.Size: OD20-1600mm(1/2inch-63inch).
2.Pressure: PN32-SDR6, PN25-SDR7.4, PN20-SDR9, PN16-SDR11, PN12.5-SDR13.6, PN10-SDR17, PN8-SDR21, PN6-SDR26, PN5-SDR33, PN4-SDR41.
3.Material: PE63, PE80, PE100, PE4710, PE3608, PE3408, PE100RC.
4.Length: 5.8M/11.8M. Coil Length 100m-200m A Roll for DN20-90mm.
5.Applications: Water Supply, Mining, Dredging, Marine, Irrigation, Industry, Chemical and Drainage for Municipal Gardens etc.
6.Standard: ISO 4427, ISO 8772, GB/T 13663, EN 12201, AS/NZS 4130, DIN 8074/8075, GOST 18599, DIPS, IPS, ASTM 3035, ASTM F714, etc.
7.Delivery: 10-20 days depending on the total quantity.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction

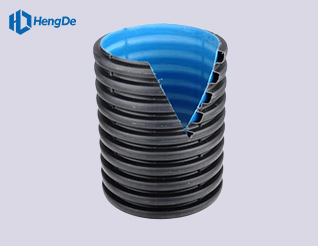

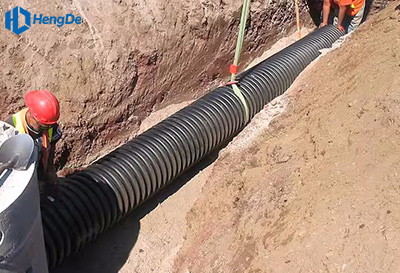

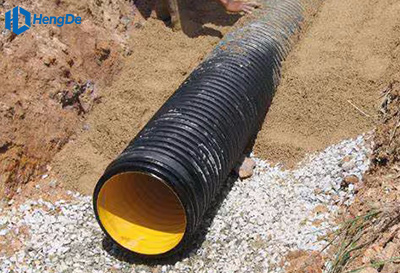

Double-wall corrugated pipes are made of high-density polyethylene (HDPE), featuring a smooth inner wall and a corrugated outer wall. Entirely black with high UV resistance, these pipes are also equipped with slots for groundwater drainage. Available in fixed lengths, they come in a diameter range (DN/OD) from 125 mm to 1200 mm and are widely used in underground drainage systems.
Description of HDPE Double Wall Corrugated Pipe
High-density polyethylene (HDPE) double-wall corrugated pipe is a new-type piping product characterized by a smooth inner wall and a corrugated outer wall structure. It is an eco-friendly product that combines the corrosion resistance of plastic with the toughness of steel.
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of HDPE Double Wall Corrugated Pipe

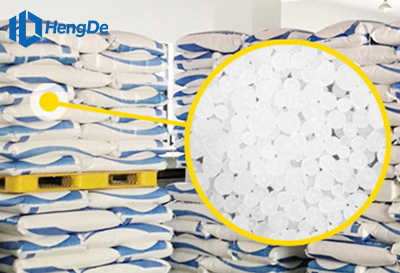

100% New raw materials
Strictly control the specifications
Customized production available
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
● Unique structural design with excellent external pressure resistance, impact resistance and ring flexibility.
● Smooth inner wall ensures low friction, allowing larger flow rates for pipes of the same inner diameter.
● Adopting socket-type flexible joints, it features convenient installation, high connection reliability and effective leak prevention.
● Lightweight design enables rapid construction and cost reduction.
● Buried service life exceeds 50 years.
● Crafted from green and eco-friendly raw materials, it is non-toxic, non-corrosive, non-scaling and fully recyclable.
● Made of polyethylene, a non-polar hydrocarbon polymer, the pipe is resistant to acid and alkali corrosion.
● Wide temperature tolerance range: the pipe will not crack even at -60℃, and the maximum temperature of the conveying medium can reach 60℃.
● Overall engineering cost is roughly equivalent to that of concrete pipes, with lower long-term operation costs.
● No special foundation is required when laid on stable soil.
Specification
| The dimensions of the outer diameter series of pipes | |||||
| Norminal Inner Diameter DN(mm) | Min Average Inner Diameter | Minimum Laminated Wall Thickness | Minimum Inner Wall Thickness | Minimum Outer Wall Thickness | Minimum Coupling Length |
| 100 | 95 | 1.0 | 0.8 | 0.7 | 32 |
| 125 | 120 | 1.2 | 1.0 | 0.8 | 38 |
| 150 | 145 | 1.3 | 1.0 | 0.8 | 43 |
| 200 | 195 | 1.5 | 1.1 | 0.9 | 54 |
| 225 | 220 | 1.7 | 1.4 | 0.9 | 55 |
| 250 | 245 | 1.8 | 1.5 | 1.0 | 59 |
| 300 | 294 | 2.0 | 1.7 | 1.0 | 64 |
| 400 | 392 | 2.5 | 2.3 | 1.4 | 74 |
| 500 | 490 | 3.0 | 3.0 | 1.8 | 85 |
| 600 | 588 | 3.5 | 3.5 | 2.1 | 96 |
| 800 | 785 | 4.5 | 4.5 | 2.7 | 118 |
| 1000 | 985 | 5.0 | 5.0 | 3.0 | 140 |
| 1200 | 1185 | 5.0 | 5.0 | 3.0 | 162 |
| The dimensions of the outer diameter series of pipes | |||||
| Norminal Inner Diameter DN(mm) | Min Average Inner Diameter | Minimum Laminated Wall Thickness | Minimum Inner Wall Thickness | Minimum Outer Wall Thickness | Minimum Coupling Length |
| 100 | 95 | 1.0 | 0.8 | 0.7 | 32 |
| 125 | 120 | 1.2 | 1.0 | 0.8 | 38 |
| 150 | 145 | 1.3 | 1.0 | 0.8 | 43 |
| 200 | 195 | 1.5 | 1.1 | 0.9 | 54 |
| 225 | 220 | 1.7 | 1.4 | 0.9 | 55 |
| 250 | 245 | 1.8 | 1.5 | 1.0 | 59 |
| 300 | 294 | 2.0 | 1.7 | 1.0 | 64 |
| 400 | 392 | 2.5 | 2.3 | 1.4 | 74 |
| 500 | 490 | 3.0 | 3.0 | 1.8 | 85 |
| 600 | 588 | 3.5 | 3.5 | 2.1 | 96 |
| 800 | 785 | 4.5 | 4.5 | 2.7 | 118 |
| 1000 | 985 | 5.0 | 5.0 | 3.0 | 140 |
| 1200 | 1185 | 5.0 | 5.0 | 3.0 | 162 |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| Physical and Mechanical Properties GB/T 19472.1-2019 |
|||
| Items | Requirement | Test methods | |
| Ring Stiffness (kN/m2) |
SN4 | ≥4 | GB/T 9647-2015 |
| SN6.3 | ≥6.3 | ||
| SN8 | ≥8 | ||
| SN10 | ≥10 | ||
| SN12.5 | ≥12.5 | ||
| SN16 | ≥16 | ||
| Impact Property (TIR) /% | ≤10 | GB/T 14152-2001 | |
| Circular Flexibility | The pipe has no cracks, the two walls are not separated, and the inner wall has no reverse bending. | ISO 13968:2008 | |
| Oven Test | No delamination, no cracking | 8.7 | |
| Density (kg/m3) | ≤1180 | GB/T 1033.1-2008 | |
| Oxidation Induction Time (200℃) /min |
≥20 | GB/T 19466.6-2009 | |
| Creep Ratio | ≤4 | GB/T 18042-2000 | |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Application

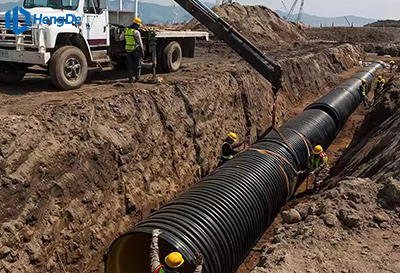

● Drainage Systems
Ideal for stormwater and subsurface drainage systems, thanks to their high flow rate capacity and excellent corrosion resistance.
● Sewer Systems
Well-suited for sanitary sewer and wastewater systems. Their corrosion resistance and smooth inner walls help maintain steady flow and minimize blockages.
● Culverts
Applied as culverts to channel water underneath roads, railways, and embankments.
● Landfill Leachate Collection
Utilized in landfill sites to collect and transport leachate (liquid waste) away from the disposal area.
● Utility Ducts
Served as protective ducts for laying utility lines including electrical conduits and fiber optic cables.
● Agricultural Drainage
Adopted by farmers for subsurface drainage in agricultural fields to manage excess water and optimize soil conditions.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Our Picture

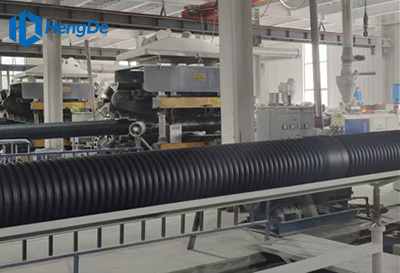

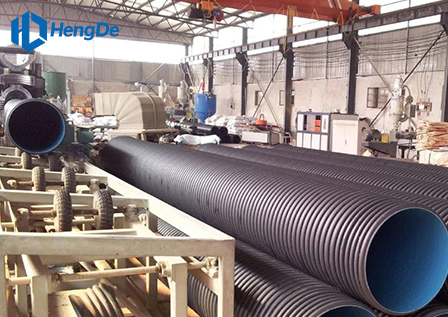

- Product Production
- Product Panorama
