Introduction

Valves are essential control components in industrial pipeline systems, designed to regulate the flow, pressure and direction of fluids (including liquids, gases and slurries).

Factory visits and third-party inspections are welcome.

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

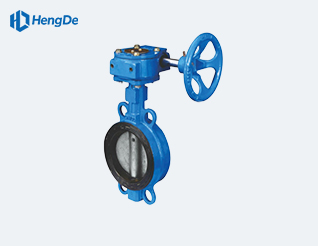

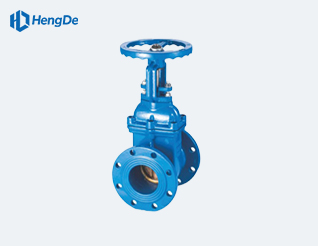

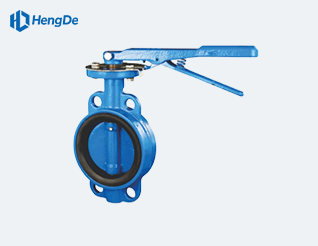

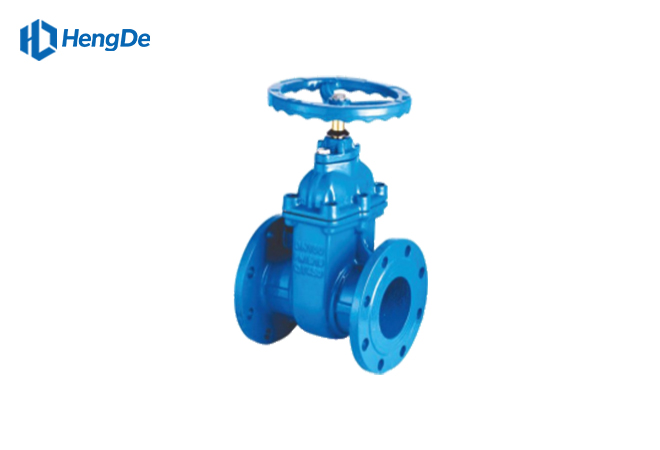

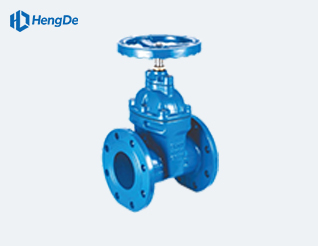

Valve
Valve
Valve
Valve

Feature

01

Durable Material Selection: We use high-quality materials tailored to different media and environments, including carbon steel, stainless steel, alloy steel, cast iron and non-metallic materials like PTFE. These materials offer excellent corrosion resistance, high-temperature tolerance and wear resistance, extending the service life of the valves.

02

Precision Control Performance: Our valves feature advanced sealing structures, which effectively prevent leakage and ensure tight shut-off. The flow control components are optimized through hydraulic simulation, enabling smooth adjustment of flow rates and stable pressure regulation to meet the precise operational requirements of various industrial processes.

03

Easy Installation & Maintenance: The modular structure allows for quick disassembly and maintenance, reducing downtime and operational costs for customers.

Specification

Flange Specification Table   Standard Number：GB/T9119-2010
Size OD(mm) ID(mm) TK(mm) Center Distance(mm) Number of holes Hole Diameter(mm)
DN25 105 28 16 75 4 14
DN32 115 35 16 85 4 14
DN40 140 43 18 100 4 18
DN50 150 53 18 110 4 18
DN63 165 67 20 125 4 18
DN75 185 80 20 145 4 18
DN90 200 95 20 160 8 18
DN110 220 116 22 180 8 18
DN125 250 135 22 210 8 18
DN140 250 145 22 210 8 18
DN160 285 170 24 240 8 22
DN180 285 185 24 240 8 22
DN200 340 210 24 295 8 22
DN225 370 235 24 325 8 22
DN250 395 260 26 350 12 22
DN315 445 327 26 400 12 22
DN355 505 365 30 460 16 22
DN400 565 412 32 515 16 26
DN450 615 465 36 565 20 26
DN500 670 515 38 620 20 26
DN630 780 645 42 725 20 30
DN710 895 725 50 840 24 30
DN800 820 825 56 950 24 33
DN900 1115 925 62 1050 28 33
DN1000 1230 1024 70 1150 28 36
DN1200 1455 1224 83 1380 32 39
DN1400 1675 1424 90 1590 36 42
DN1600 1620 1624 100 1820 40 48
DN1800 2115 1824 110 2020 44 48
DN2000 2020 2024 120 2230 48 48



Flange Specification Table   Standard Number：GB/T9119-2010
Size OD(mm) ID(mm) TK(mm) Center Distance(mm) Number of holes Hole Diameter(mm)
25 105 28 16 75 4 14
32 115 35 16 85 4 14
40 140 43 18 100 4 18
50 150 53 18 110 4 18
63 165 67 20 125 4 18
75 185 80 20 145 4 18
90 200 95 20 160 8 18
110 220 116 20 180 8 18
125 250 135 22 210 8 18
140 250 145 22 210 8 18
160 285 170 24 240 8 22
180 285 185 24 240 8 22
200 340 210 26 295 12 22
225 370 235 27 325 12 22
250 405 260 29 355 12 26
315 460 327 32 410 12 26
355 520 365 35 470 16 26
400 580 412 38 525 16 30
450 640 465 42 585 20 30
500 715 515 46 650 20 33
630 840 645 55 770 20 36
710 910 725 63 840 24 36
800 1025 825 74 950 24 39
900 1125 925 82 1050 28 39
1000 1255 1024 90 1170 28 42
1200 1485 1224 95 1390 32 48
1400 1685 1424 103 1590 36 48
1600 1930 1624 115 1820 40 56
1800 2130 1824 126 2020 44 56
2000 2345 2024 138 2230 48 62

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

Application

Oil & gas transmission, water supply and drainage, power plant pipelines.

Chemical processing, HVAC systems, steam pipelines.

Petrochemical industry, natural gas distribution, food and beverage processing.

Municipal engineering, wastewater treatment, ventilation systems.

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
